Add Charts to your WPF app ! A LiveCharts Tutorial

By Isaac Smith on Unsplash.com

Adding charts to WPF applications was, at the beginning of the decade (2010 - 2020), done from the ground up, using the built-in WPF toolkit that was released on June 2009. and as time is the currency of development, one would not want to spend it trying to conceive a good looking and comprehensible chart because that would take so long! later on many libraries would come out to the world to introduce better, interactive and easy to use charts.

In this article we suggest using LiveCharts, a library that offers high performance, nice UI and diverse functionalities, and see how can we implement it in the code which, by the way, is very easy to do !

What is Live Charts

LiveCharts is an open source full solution library for .Net technologies and is dedicated to data visualization, creating simple interactive charts, maps and more ! I find the library so easy to use, wether developping a WPF app or any other technology on .Net.
You can find more information on their website : lvcharts.net
or on their github repository : github.com/Live-Charts/Live-Charts .

How to add Live Charts to you WPF app:

We can install the package on Visual Studio using NuGet, which offers a Package Manager with a great friendly and easy to use interface, or we can install it through the console:

a - Using NuGet Package Manager:

First of all steps we want to see how to use the package manager :

1 - We open Visual Studio on the project to which we want to add Live Charts, go to tools -> NuGet Package Manager on the menu bar:

Figure 01 - Select NuGet Package Manager

2 - We, then, select Manage NuGet packages for solution… as the figure below shows  :

Figure 02 - Select NuGet Package Manager

3 - once we make the click, we get to see the following interface :

Figure 03 - Installing The Package Manager Using NuGet Package Manager

On this interface we click on browse high up above the search bar, after that we make the search on Live Chart, we choose WPF version. Click install, wait for it, you are ready to go !

b - Using NuGet Console :

As for the console I guess less steps look better for many people, all we need to do is to open up the console :

Figure 04 - Select NuGet Console To Install The Package

1 - Once the console is open, we are going to write this line and click Enter :

Install-Package LiveCharts.Wpf

Figure 05 - Installing The Package Using NuGet Console

2 - When the download is finished and the package gets installed we are expecting to see the following page :

Figure 06 - Welcome Page After Successful Installation

3 - Well, the last thing we should do to have our application capable of using Live Charts, we need to add some lines of code :

A namespace to your XAML :

xmlns:lvc="clr-namespace:LiveCharts.Wpf;assembly=LiveCharts.Wpf"

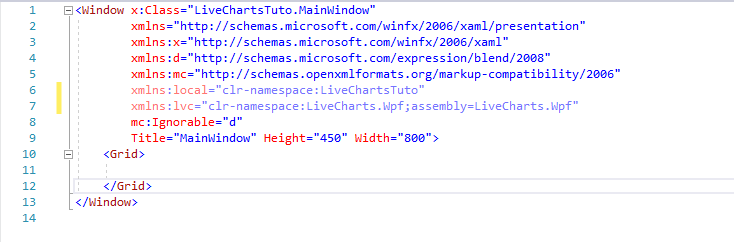

Figure 07 - Add A Namespace To Your XAML

And these lines to the code behind :

using LiveCharts;

using LiveCharts.Wpf;

Now, we can start using the package to create some awesome charts !

How can you use it :

Live charts offers a pack of all sorts of awesome charts that one would find very useful ! We are going to choose one of them, and let's go for classic one ! a Basic Column Chart :
1 - First we need to create a WPF project on Visual Studio ( I am using VS2017) :

Figure 08 - Creation of the WPF project

We name the project "LiveChartsTuto", then click ok !
2 - Once the project is created and the library installed, we can create our chart now ! (the installation procedure was described in the previous section).
3 - to do that we need to add this code to XAML :

<lvc:CartesianChart Series="{Binding SeriesCollection}" LegendLocation="Left">
    <lvc:CartesianChart.AxisX>
        <lvc:Axis Title="Salesman" Labels="{Binding Labels}"></lvc:Axis>
    </lvc:CartesianChart.AxisX>
    <lvc:CartesianChart.AxisY>
          <lvc:Axis Title="Sold Apps" LabelFormatter="{Binding Formatter}"></lvc:Axis>
    </lvc:CartesianChart.AxisY>
</lvc:CartesianChart>

Figure 09 - Column Chart XAML Code

4 - After adding XAML we need to add another piece of code to the code behind, (adding data to the chart).

public partial class mainwindow : window
    {
        public mainwindow()
            {
                initializecomponent();

                // tuto code
                seriescollection = new seriescollection
                    {
                        new columnseries
                            {
                                title = "2015",
                                values = new chartvalues<double> { 10, 50, 39, 50 }
                             }
                    };

                //adding series will update and animate the chart automatically
                seriescollection.add(new columnseries {
                    title = "2016",
                    values = new chartvalues<double> { 11, 56, 42 }
                });

                //also adding values updates and animates the chart automatically
                seriescollection[1].values.add(48d);
                labels = new[] { "maria", "susan", "charles", "frida" };
                formatter = value => value.tostring("n");
                datacontext = this;
            }

            public seriescollection seriescollection { get; set; }
            public string[] labels { get; set; }
            public func<double, string> formatter { get; set; }
    }

It should look like this :

Figure 10 - The code behind

After that you can build the solution and start clicking f5, and voila !

Figure 11 - The application window

                                                 -- -- -- -- -- -- --

The market requires more of rich expressive software, which imposes better user experience and high profile developers; and nothing makes this any easier for developers than libraries and frameworks. Live charts is just one of many great libraries that make data visualization too easy and developing WPF applications more exciting !
